LINDE M25 Hand Pallet Truck (Series 033-01)

1. Specification

	M25
Service weight	kg	2500
Lift height	mm	120
Fork carriage	mm	800, 900, 1000, 1150
Turning radius	mm	1361

2. Features

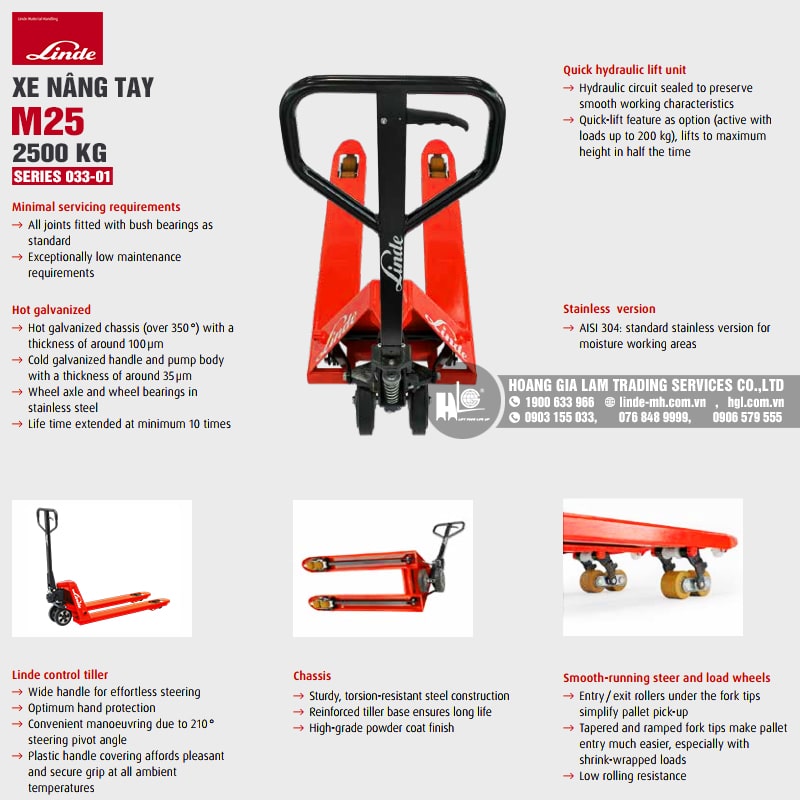

Linde control tiller has a wide handle for effortless steering and optimum hand protection for convenient manoeuvring due to 220° steering pivot angle. The plastic handle covering affords pleasant and secure grip at all ambient temperatures. Smooth-running steer and low rolling resistance load wheels with entry/exit rollers under the fork tips simplify pallet pick-up and tapered and ramped fork tips make pallet entry much easier, especially with stretch-wrapped loads.

• Sturdy, torsion-resistant steel construction
• Reinforced tiller base ensures long life
• High-grade powder coat finish
• All joints fitted with bush bearings as standard
• Hydraulic circuit sealed air and dust tight
• Fast-lift feature as standard (active with loads up to 150 kg)

3. Performance

Air and dust-tight enclosure of the hydraulic circuit ensures trouble-free operation over long periods of time, no matter how harsh conditions may be on site. With the Quick-lift feature, loads weighing up to 200 kg can be lifted to maximum height in half the time. The M25 is a hand pallet truck for peak performance.

4. Safety

At Linde, safety receives the closest attention in material handling trucks of every size. The wide handle of the Linde control tiller provides the operator with the necessary sense of safety, effectively protecting the hands throughout every maneuver, while the low-slung chassis prevents risk of foot injury.

5. Comfort

The Linde M25 hand pallet truck lives up to its purpose of a highconvenience all-around helper. Functional design devoid of all sharp corners and edges plus a large steering pivot angle of 102.5 to either side make it exceptionally manageable and manoeuvrable inside a trailer or in other tight spaces.

6. Reliability

The European quality torsion-resistant construction of the strong chassis permits safe handling of loads up to 2500 kg. When the maximum load capacity is exceeded, oil pressure exceeds its maximum limit and the valve automatically locks the forks. Thus possible structural damage is avoided. The frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance.

7. Service

Effective and cost-efficient at work. Steer and load wheels are of very high quality, quiet running and low in rolling resistance. Bush bearings are fitted on all joints, making it an exceptionally low-maintenance hand pallet truck.
